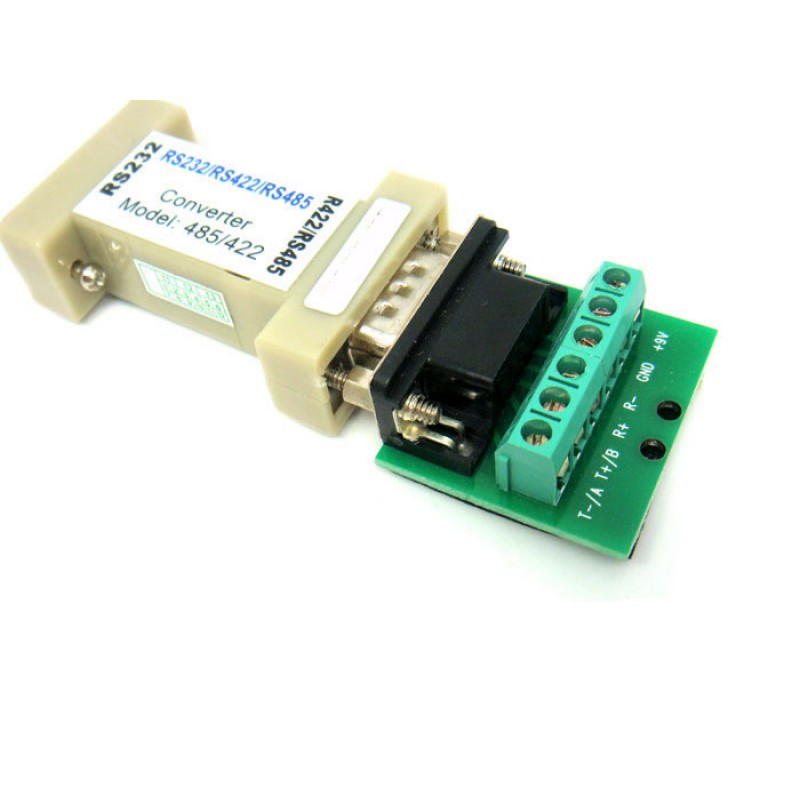

RS232 to RS485/RS422 converter
$8.99
- Product Code: STM422
- Availability: 1999
- 2 or more $8.29
- 10 or more $7.39
- 50 or more $6.59
- Compatibility: EIA/TIA RS232C standard and RS485/RS422 standard
- Interface RS232 side: DB9 female connector
- Interface RS485/RS422 side: DB9 male connector with optional (included) terminal board
- Transmission rate: 300 - 115200bps
- Transmission distance: RS422 max. 1200m, RS232 side max. 5m
- Working mode: asynchronous, duplex, differential transmission
- Working environment: 0 ~ 70°C, relative humidity 5% - 95%;
- Mechanical dimensions: 95mm x 33mm x 17mm
