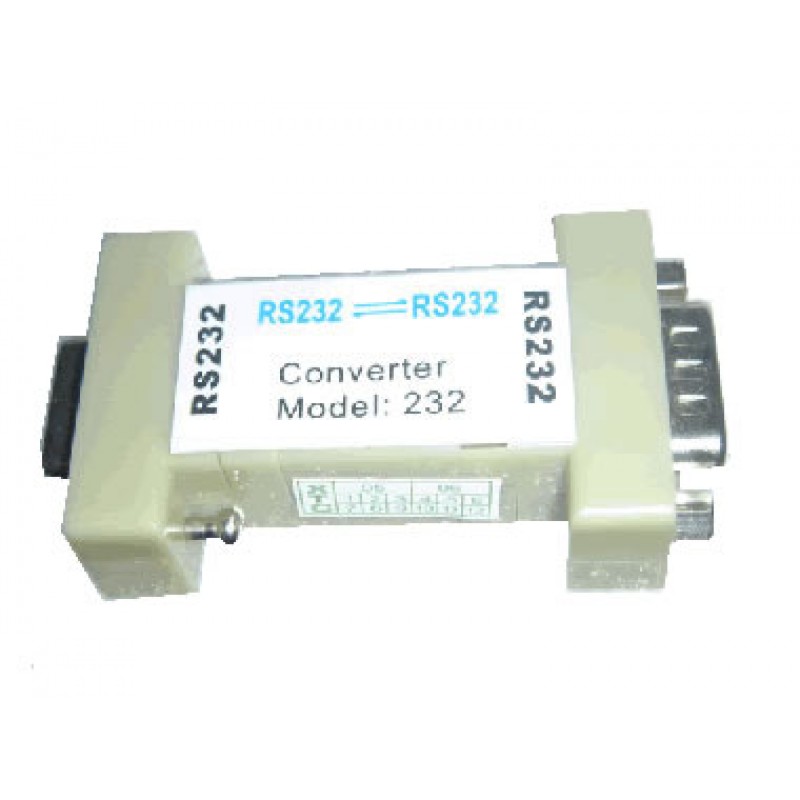

RS232 To RS232 Optical Isolation Repeater
$8.99
- Product Code: STM232
- Availability: 1999
- 2 or more $8.29
- 10 or more $7.39
- 50 or more $6.59
- Interface: Conform to EIA RS-232 and CCITT V.24asynchronous protocols
- Connector: Both sides use DB9 connectors
- Transmission mode: Asynchronous, full duplex, fully transparent
- Isolation voltage : 2500V sequence or 7500V impluse
- Power supply: supply electricity from RS-232 port (TXD,RTS OR DTR)
- Working environment: 0 to 50 ° C (0%-95% RH)
- Protect serial port, inhibit static and surge
- prevent ground loop and surge damaging devices
- Adopt latest high voltage photoelectric parts
- powerful anti-jamming capacity
- Support RS-232 asynchronous communication standard
- direct insert into RS-232 interface serially, convenient operation
- Transmission speed up to 57.6kbps
- Compact size, optional manifold signals and suitable for various devices
- Housing: ABS plastic
